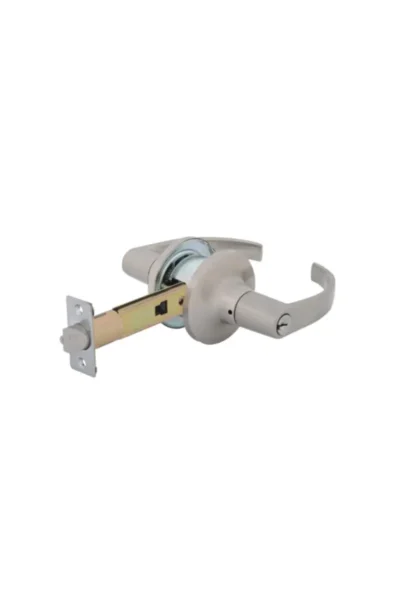

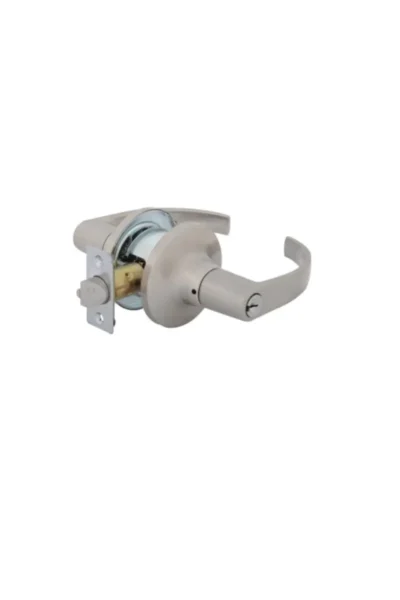

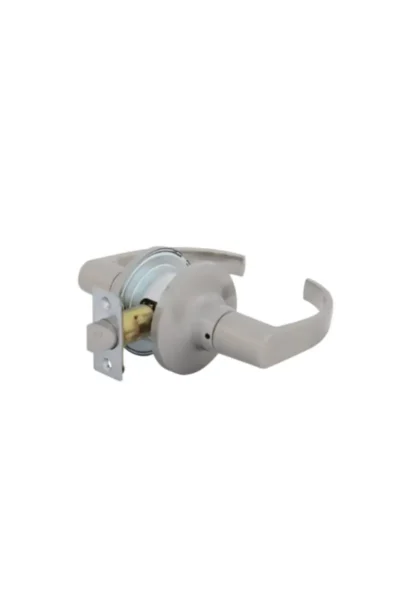

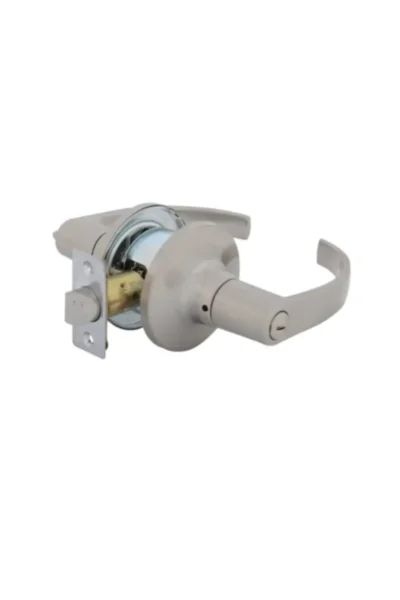

EZSET RAGLAN COMMERCIAL LEVERSETS
Price range: $75.98 through $176.72 (exc. GST)
EZSET RAGLAN COMMERCIAL LEVERSETS
FUNCTIONS
– Entrance – Single Cylinder
– Passage
– Privacy
– Storeroom – Only opened by the Key from outside (always unlocked from inside)
– Classroom – Unlocked by Key from outside and always unlocked from inside

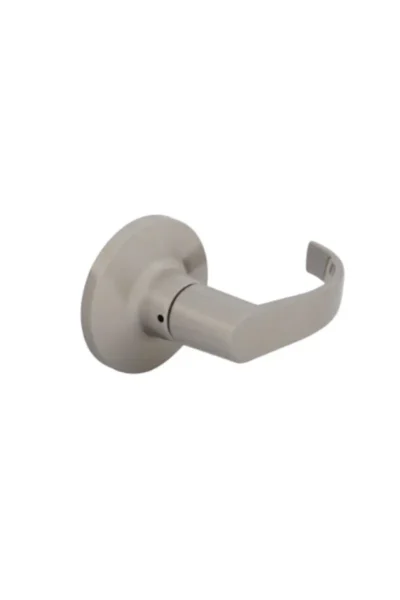

– Dummy Lever
LATCH BACKSETS
– 60mm
– 70mm
– 127mm – Locking Functions Only
FINISHES
– Satin Nickel
Spare Latches available – see listing
EZSET RAGLAN COMMERCIAL LEVERSETS
– Auto Release Function
– Concealed mounting screws
– Protection Sleeve Design
– Fire Rated for both NZ Fire Doors and Pacific Fire Doors
– Can accomodate security profile PD type barrel
– Suits door thickness – 35-51mm
– Suits 54mm hole
– 6 Pin C 4 Keyway – 3 Keys supplied
– Rose Diameter – 75mm
– Comes with a D-Strike
– Satin Nickel & pressure dies cast sinc
– Faceplate has square corners (25.4mm x 57mm)
– D-Strike (28.2mm c 69.5mm x 2mm)
FUNCTIONS
– Entrance – Single Cylinder
– Passage
– Privacy
– Storeroom – Only opened by the Key from outside (always unlocked from inside)
– Classroom – Unlocked by Key from outside and always unlocked from inside
– Dummy Lever
LATCH BACKSETS
– 60-70mm Adjustable
– 127mm – Locking Functions Only
FINISHES
– Satin Nickel
| Function | Classroom, Dummy Lever, Entrance Set, Passage Set, Privacy Set, Storeroom |
|---|---|
| Backset | 127mm Backset, 60/70mm Adjustable |
