EXIDOR SINGLE 1 POINT PANIC EXIT DEVICE

EXIDOR SINGLE 1 POINT PANIC EXIT DEVICE

Exidor Panic Exit Device

– Combining attractive design and high-quality engineering, Exidor panic hardware is ideally suited to all commercial buildings where a safe and speedy exit is essential. Whether you’re looking for solutions for timber, steel, UPVC or aluminium doors, Exidor panic hardware and exit devices are available with bolts, vertical or horizontal pullman latches, touch bars, and much more.

– The Exidor 200 series panic and emergency hardware offers a modern, aesthetically pleasing style giving optimum safety and security, carries the certifire quality mark, is fire rated and is certified to the European standards to ensure peace of mind.

– The Exidor 296 is designed for single and double door applications. The unit is operated by a downward thrust of the cross bar to give a speedy exit in panic situations. An adapter for use with a rim cylinder for outside access is supplied as standard.

Features
– Non-handed
– Fire rated for use on timber and steel doors
– Surface mounted
– Bar can be cut to size on site
– Maximum panel width 1220mm (single panel)
– Maximum door weight 200kg
– Suits single door applications
– Adapter for operating with a rim cylinder
– Closed arm design
– Door opening outward

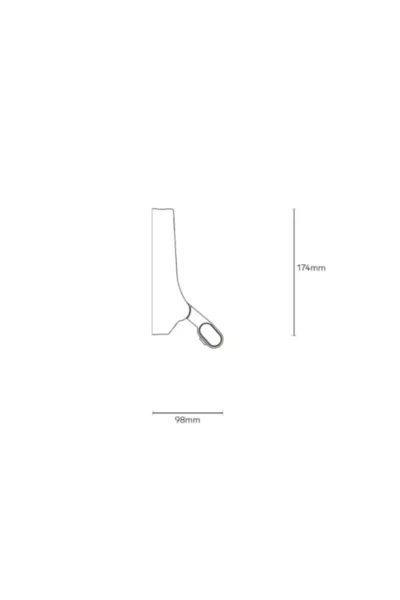

– Projection 98mm from door face
– Nmmber of locking points: 1
– Bolt style latch
– Durability 200,000 cycles
– Supplied in trade pack

Operation
Pushing the bar down into the door face retracts the latch. Releasing the bar returns the latch to the rest position.

Finish
Silver
