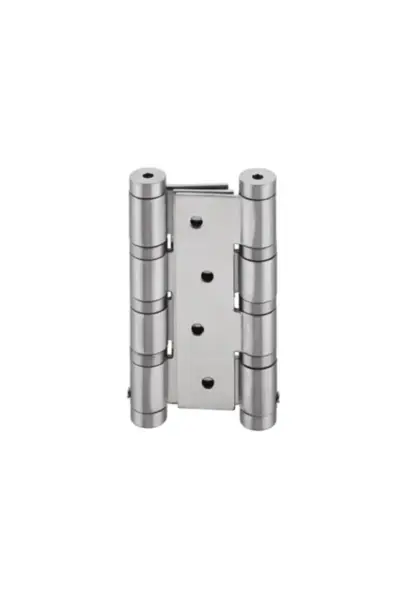

JNF DOUBLE ACTION SPRING HINGE – IN.05.645
$81.01 (exc. GST)
JNF DOUBLE ACTION SPRING HINGE – IN.05.645
– Double action hinge with spring for self closing.
– Reversible
– Spring with power adjustment with 6 ball bearings
– Suitable for doors up to 40kg and 1100mm wide
– Minimum door thickness is 30mm

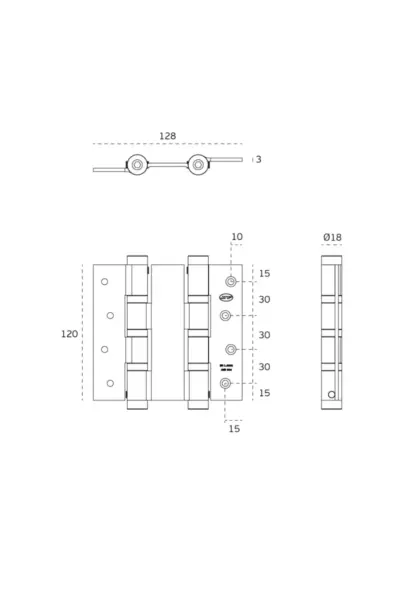

DIMENSIONS
– Height – 132mm
– Width (open) – 120mm
– Thickness – 3mm
SPECIFICATION

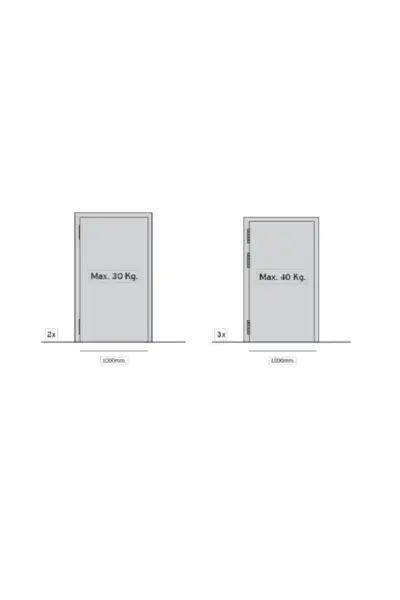

– For Doors up to 30kg Use 2 hinges
– For Doors up to 40kg use 3 hinges
– Maximum door width 1100mm
FINISH
– Stainless Steel
JNF DOUBLE ACTION SPRING HINGE – IN.05.645
– Double action hinge with spring for self closing.
– Reversible
– Spring with power adjustment with 6 ball bearings.
– Suitable for doors up to 40kg and 1100mm wide
– Minimum door thickness is 30mm
DIMENSIONS
– Height – 132mm
– Width (open) – 120mm
– Thickness – 3mm
SPECIFICATION
– For Doors up to 30kg Use 2 hinges
– For Doors up to 40kg use 3 hinges
– Maximum door width 1100mm
FINISH
– Stainless Steel
