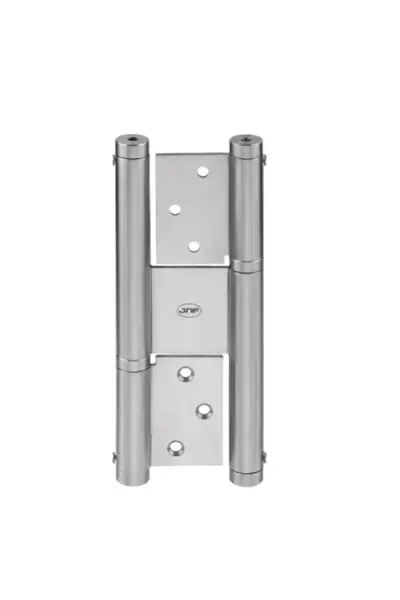

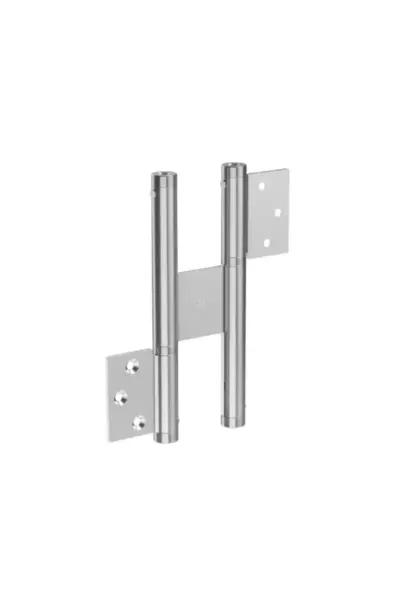

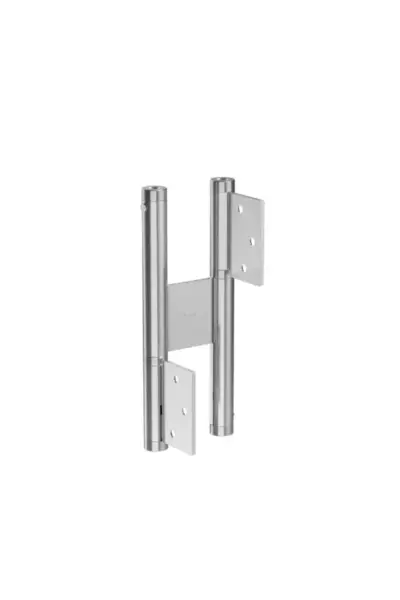

JNF DOUBLE ACTION SPRING HINGE – IN.05.660
$92.24 (exc. GST)
JNF DOUBLE ACTION SPRING HINGE – IN.05.660
– Flat double action hinge to overlap with spring for self closing
– Reversible
– Spring with power adjustment with 2 ball bearings

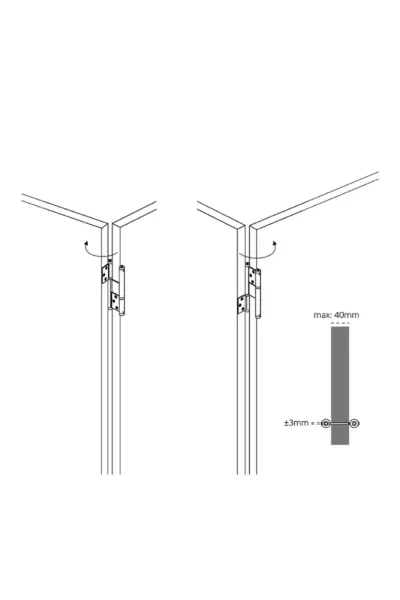

– Suits doors up to 50kg and thicker than 40mm

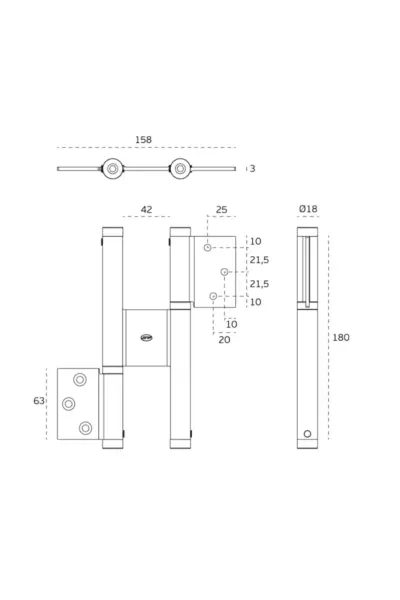

DIMENSIONS
– Height – 180mm
– Width (open) – 158mm
– Thickness – 3mm
SPECIFICATION
– For Doors up to 50kg use 3 hinges
– Minimum door Thickness – 40mm
FINISH
– Stainless Steel
JNF DOUBLE ACTION SPRING HINGE – IN.05.660
– Flat double action hinge to overlap with spring for self closing
– Reversible
– Spring with power adjustment with 2 ball bearings
– Suits doors up to 50kg and thicker than 40mm
DIMENSIONS
– Height – 180mm
– Width (open) – 158mm
– Thickness – 3mm
SPECIFICATION
– For Doors up to 50kg use 3 hinges
– Minimum door Thickness – 40mm
FINISH
– Stainless Steel
