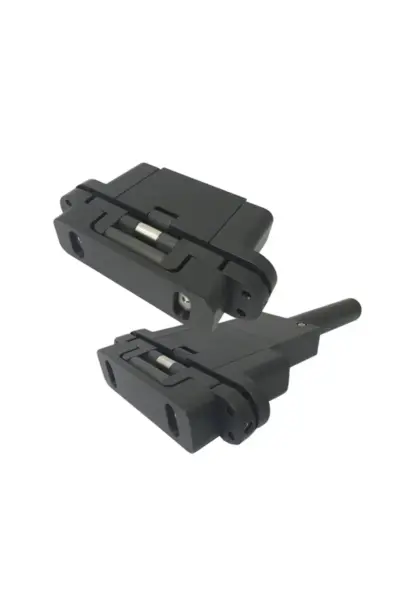

D&D SURECLOSE® CONCEALFIT

– D&D SURECLOSE® CONCEALFIT door closer and hinge sets are high-quality, hydraulic units aimed at providing a concealed finish and a highly adjustable self-closing solution.
– They are ideal for interior and exterior wood, hollow-metal and aluminium doors and frames. When closed, the D&D SURECLOSE® CONCEALFIT system cannot be seen or tampered with. They also provide burglary and vandalism resistance.
– Superb engineering and patented design allow total concealment of the hinge-closer unit in a remarkably small housing.
– The Hinge-Closer is easily adjustable in three dimensions (horizontal, vertical and in/out) for fine positioning and speedy gate alignment.
– They feature fine controls for primary closing speed, latching speed and backcheck.
– D&D SURECLOSE® CONCEALFIT is designed for premium flush doors and “invisible” doors.

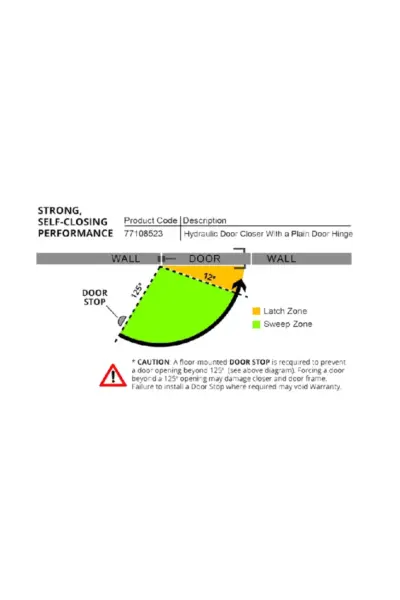

– With NO hold-open feature, it opens to, and self-closes from, 125˚.
– Steel receivers for hollow-core doors, and routing templates and drill jig for wood gates, are sold separatelY – Contact us for info on these
– All D&D SURECLOSE® CONCEALFIT housings are made of high-grade aluminium.

FEATURES

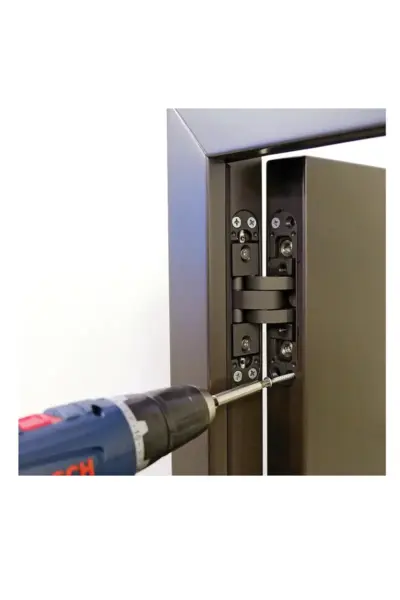

– Easily installed internally within the door or wall cavity frame

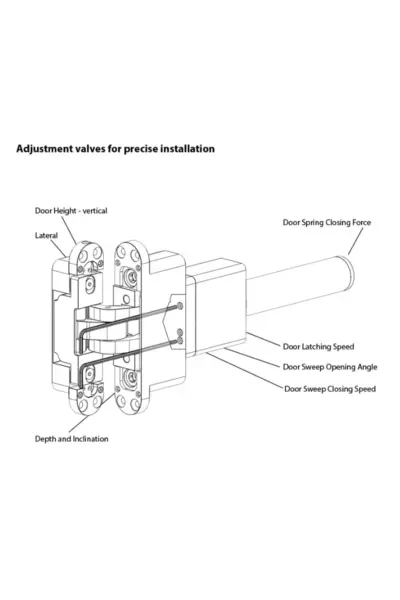

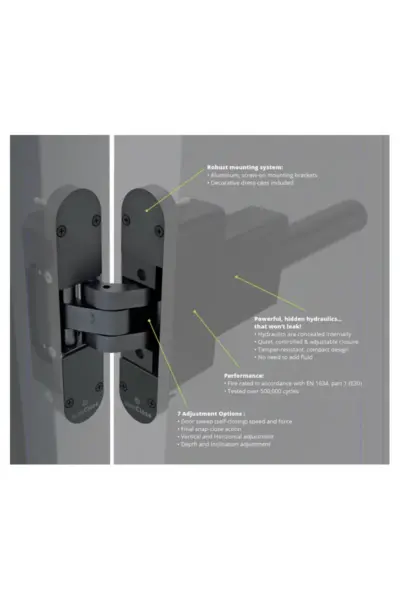

– Up to 7 different adjustments to ensure perfect installation
– Easily accessed, adjustable closing and latching speed valves
– Secure, safe and quiet operation with no visible moving parts
– The innovative choice of Architects, Engineers and Designers
– ADA (disability) compliant
– Centre mounting
– Self closing hinge from 125º
– Will not hold gates/doors open
– Maximum opening angle 125°

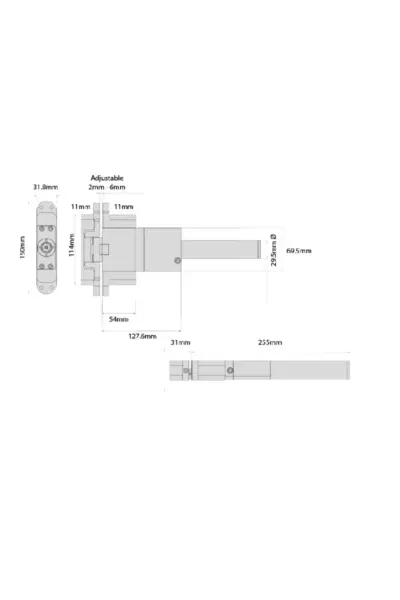

SPECIFICATIONS
– Door Application: Interior Door, Front Door, Fire Rated Door, Force Entry Resistant Door, Hotel Door, Theatre Door, Residential Garage Door, Soundproof Door
– Door Type: Self-Closing, Residential and Commercial Flush Doors
– Door Material: Wood Door, Hollow Core Door (Metal, Fibreglass FBG)
– Self-Closing Door Weight: Up to 100kg
– Approximate Door Size: 1220mm maximum width
– Minimum Door Thickness: 40mm
– Vertical Adjustment: +/- 2mm
– Horizontal Adjustment: +/- 1.25mm

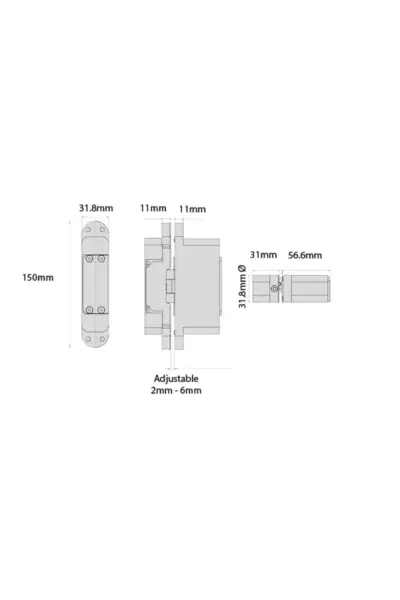

– Door Clearance Adjustment from 2mm to 6mm
– Fixing Method: Aluminium Screw-On
– Maximum Door Weight: 120kg
– Final Snap Close Actiom: 12° to 0°
– Extra hinges can be purchased seperately if required

FINISH
– Black Anodized

– LINK TO INSTALLATION INSTRUCTIONS
