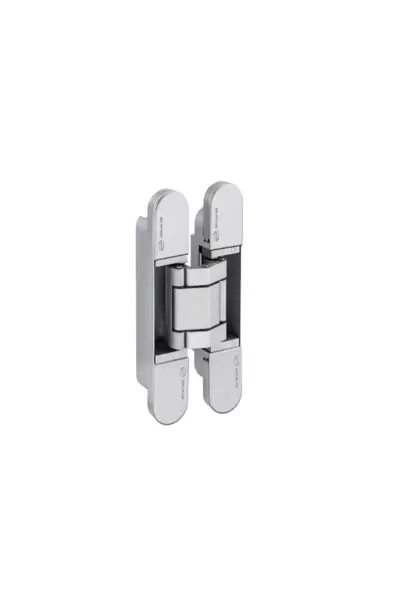

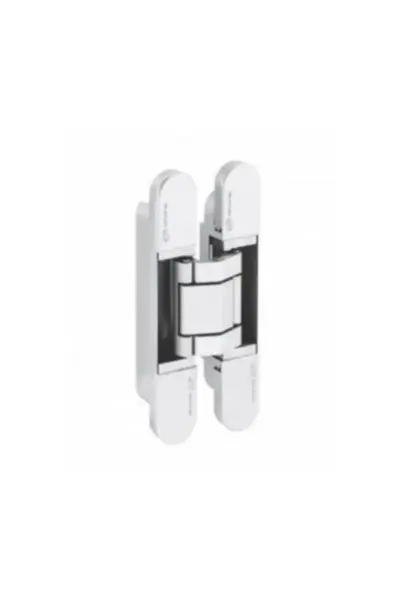

JNF COPLAN 150 (80KG) – CONCEALED HINGE WITH 3D ADJUSTMENT – IN.05.061
$107.00 (exc. GST)
JNF COPLAN 150 (80KG) – CONCEALED HINGE WITH 3D ADJUSTMENT – IN.05.061

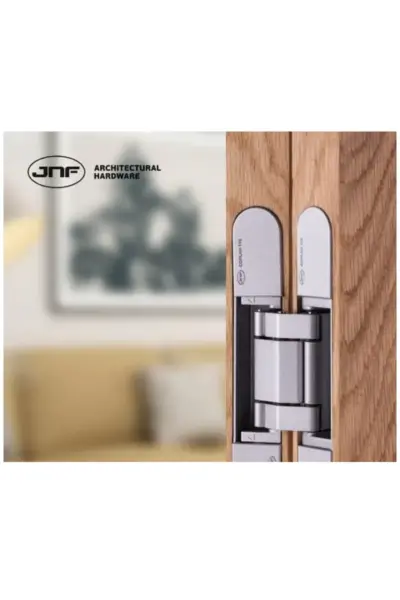

– Invisible Hinge for Heavy Duty Doors
– Up to 80KG
– Minimum Door thickness 31mm
– Recommended for use on Interior Doors, supplied with Satin Nickel Screws and plastic covers
– Maximum Opening – 120 Degrees
– Suitable for Left or Right opening Doors
– Self Lubricating

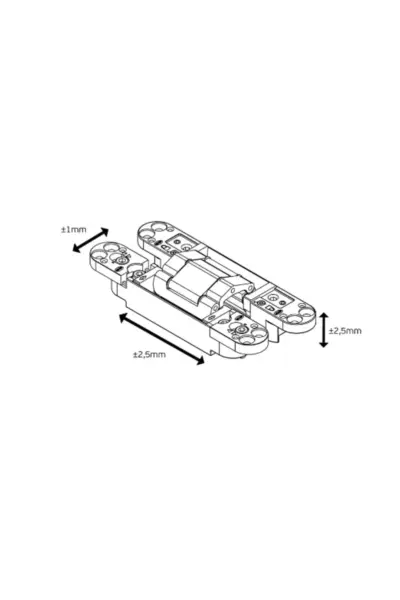

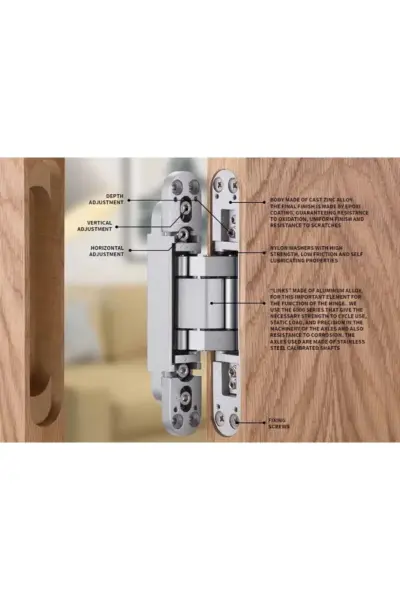

– Hinge can be adjusted on three axis to acheive perfect alignment
– Doors up to 50kg – Use 2 hinges
– Doors up to 80kg – Use 3 hinges
– Doors with a Door Closer up to 60kg – Use 3 hinges

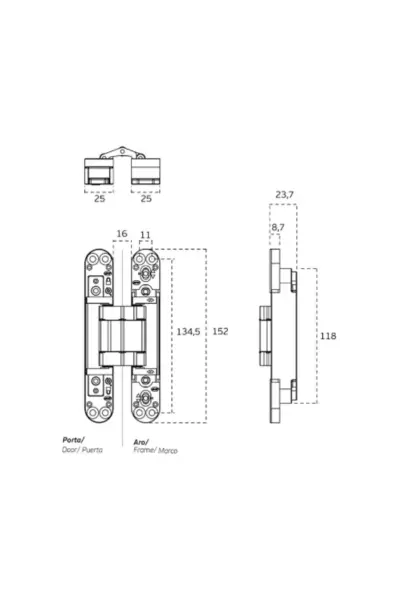

DIMESNSIONS
– Height – 152mm
– Width – 25mm
– Depth – 23.7mm
FINISHES
– Satin Chrome
– White

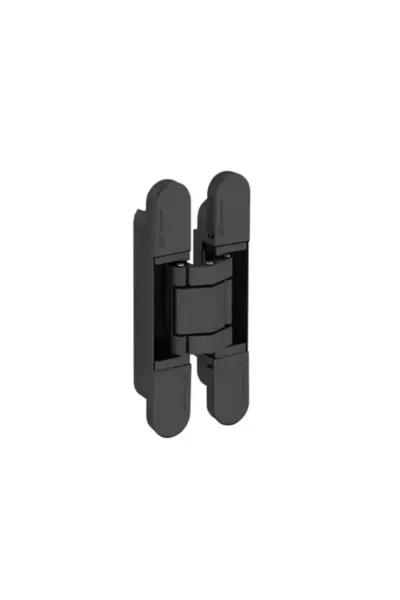

– Black

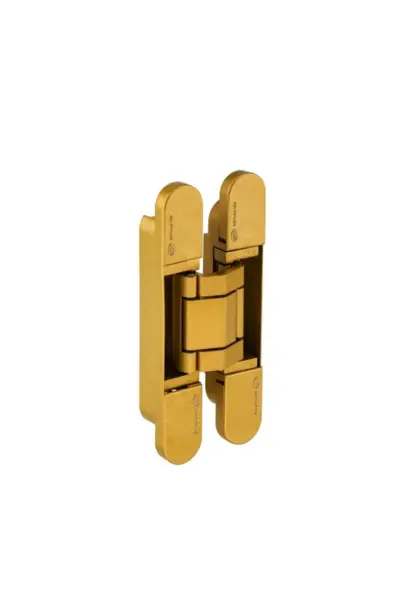

– Gold

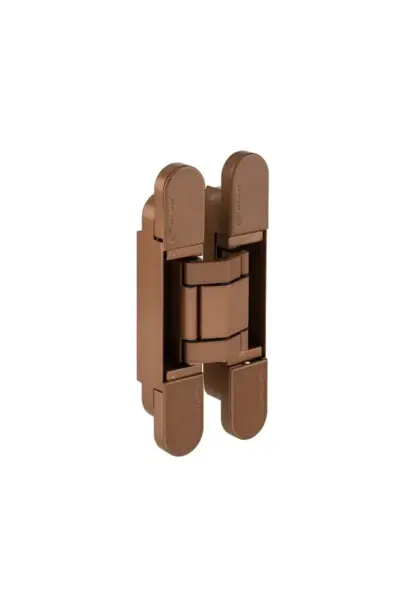

– Copper
JNF COPLAN 150 (80KG) – CONCEALED HINGE WITH 3D ADJUSTMENT – IN.05.061
– Invisible Hinge for Heavy Duty Doors
– Up to 80KG
– Minimum Door thickness 31mm
– Recommended for use on Interior Doors, supplied with Satin Nickel Screws and plastic covers
– Maximum Opening – 120 Degrees
– Suitable for Left or Right opening Doors
– Self Lubricating
– Hinge can be adjusted on three axis to acheive perfect alignment
– Also available in other weight options: COPLAN 120 (50kg), COPLAN 175 (90kg), COPLAN 245 (120kg)
– Doors up to 50kg – Use 2 hinges
– Doors up to 80kg – Use 3 hinges
– Doors with a Door Closer up to 60kg – Use 3 hinges
DIMESNSIONS
– Height – 152mm
– Width – 25mm
– Depth – 23.7mm
FINISHES
– Satin Chrome
– White
– Black
– Gold
– Copper
| Finish | Black, Copper, Gold, Satin Chrome, White |
|---|
