JNF COPLAN 175 (120KG)- CONCEALED HINGE WITH 3D ADJUSTMENT – IN.05.062

JNF COPLAN 175 (120KG)- CONCEALED HINGE WITH 3D ADJUSTMENT – IN.05.062

– Invisible Hinge for Heavy Duty Doors
– Up to 120kg
– Minimum Door thickness 34mm
– Recommended for use on Interior Doors, supplied with Satin Nickel Screws and plastic covers
– Maximum Opening – 120 Degrees
– Suitable for Left or Right opening Doors
– Self Lubricating
– Hinge can be adjusted on three axis to acheive perfect alignment
– Also available in other weight options: COPLAN 120 (50kg), COPLAN 150 (80kg), COPLAN 245 (120kg)

– Doors up to 80kg – Use 2 hinges
– Doors up to 120kg – Use 3 hinges
– Doors with a Door Closer up to 90kg – Use 3 hinges

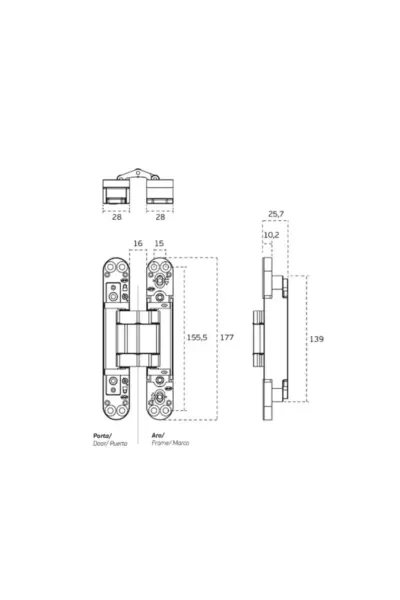

DIMESNSIONS
– Height – 177mm
– Width – 28mm
– Depth – 25.7mm

FINISHES
– Satin Chrome
– Black
